Yuktix Gidabits Soil Sensing

Special Features

HOW DOES IT WORK FEATURES?

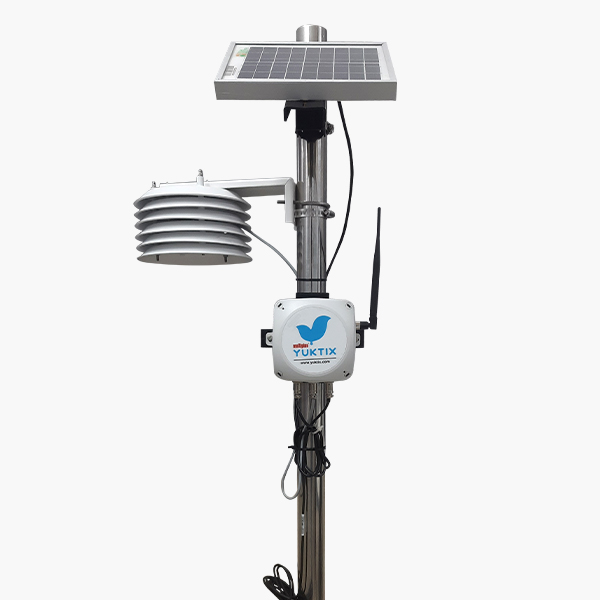

Yuktix GidaBits sensing device collects real-time Soil VWC (Volumetric Water content) and Soil temperature from the field using state of the art, research-grade sensors. It then publishes daily advisory on your phone using sensors values, Weather Forecast, ETO (Evapotranspiration) and the stage of your crop.

  • Save water used in irrigation
  • Increase crop yield
  • Real-time soil moisture monitoring
  • Crop based irrigation advisory
  • Integrated Weather Forecast
  • Best in class
  • Customizable alerts on the phone.
  • IP67 Rated waterproof device
  • Wireless
  • Solar powered with battery backup

Specification

Description

Unlock the power of precision Agriculture with GidaBits Soil Sensing device. Get real time insights about your field soil moisture levels, enabling you to optimize the water used in irrigation. Maximize crop yield while conserving water with our innovative solution.



  • SOIL MOISTURE
  • Range

       Mineral Soil - 0.00=0.70 m³ / m³

       Soil Less media - 0.0 - 1.0 m³ / m³

       Resolution: 0.001 m³ / m³

       Accuracy: Generic Calibration - +/- 0.03 m³ /m³

  • SOIL TEMPERATURE

       Range: -40 to+60 °C

       Accuracy: +/- 1°C from -40 to 0 °C and +/-0.5 °C from 0 to +60°C

       Resolution: 0.1 °C

  • AIR TEMPERATURE

        Range: -40 to 123.8 °C

        Accuracy: +/- 0.3 °C

        Resolution: 0.01 °C

        Repeatability: +/- 0.1 °C

  • AIR HUMIDITY

      Range: 0 to 100% RH

      Accuracy: +/- 2%

      Resolution: 0.7%

      Repeatability: +/- 0.1 %

  • COMMUNICATION OPTION

            4G / LoRa*

OTHER SPECIFICATIONS

  •  IP67 Enclosure to withstand harsh weather
  •  Solar Powered with a battery backup
  •  Solar panel - 6V, 5 Watt
  •  Easy to Install, Operate and Maintain
  •  Solar Radiation shield for proper air flow around the temperature & humidity sensors
  •  Compatible with Yuktix GidaBts cloud only
  •  Android Application - Local language support
  •  Alerts over Push notifications and SMS
  •  Best In class sensors
  •  2 year back to bench warranty
